Ritar battery DC12-150A 12V150AH@C20/1.75VPC AGM Deep Cycle VRLA Batteries

Ritar battery DC12-150A 12V150AH@C20/1.75VPC AGM Deep Cycle VRLA Batteries

Purchase Support +0086 19710409880 Albert
Voltage class: 2V/6V/12V
Capacity range: 26Ah~3000Ah
Superior deep cycle design
Suitable for solar & wind energy, UPS, telecom systems, electric power systems, control systems, golf cars, etc.

DC (AGM Deep Cycle) series is specially designed for frequent cyclic discharge. By using strong grids and specially designed active material, the DC series battery offers 30% more cyclic life than the standby series. It is suitable for UPS, solar & wind energy, telecom system, electric power system, electric vehicles, golf cars, etc.

Model	Nominal Voltage （V）	Capacity （Ah）	Dimension				Terminal
			Length	Width	Height	Total Height
			mm	mm	mm	mm
DC12-26	12	26	166	176	125	125	F3(M5) / F13- BP(M5)/T24(M5)
DC12-26S	12	26	165	125	174	174	F7(M8) / F11(M6)
DC12-28S	12	28	165	125	174	174	F7(M8) / F11(M6)

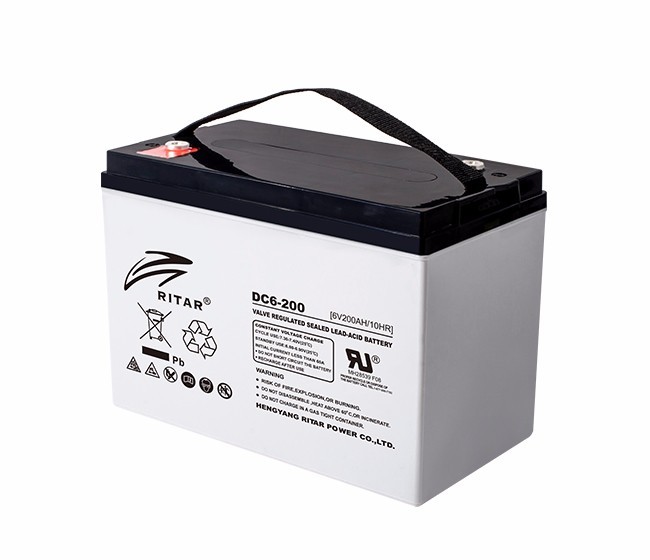

DC6-180	6	180	306	168	220	227	F12(M8)
DC6-200	6	200	322	177.5	226	231	F16(M8) / F14(M8)
DC6-225	6	225	322	177.5	226	231	F16(M8) / F14(M8)
DC6-225S	6	225	243	187	275	275	F14(M8)
DC12-40	12	40	198	166	169	169	F4(M5) / F11(M6)
DC12-40A	12	40	198	166	169	169	F4(M5) / F11(M6)
DC12-55	12	55	229	138	211	216	F15(M6) / F11(M6)
DC12-55A	12	55	229	138	211	216	F15(M6) / F11(M6)
DC12-65	12	65	350	167	182	182	F5(M8) / F11(M6)
DC12-80	12	80	350	167	182	182	F5(M8) / F11(M6)
DC12-100S	12	100	306.5	168.5	210	215	F15(M6) / F12(M8)
DC12-100SA	12	100	306.5	168.5	210	215	F15(M6) / F12(M8)
DC12-100	12	100	328	172	215	220	F5(M8) / F12(M8)
DC12-100A	12	100	328	172	215	220	F5(M8) / F12(M8)

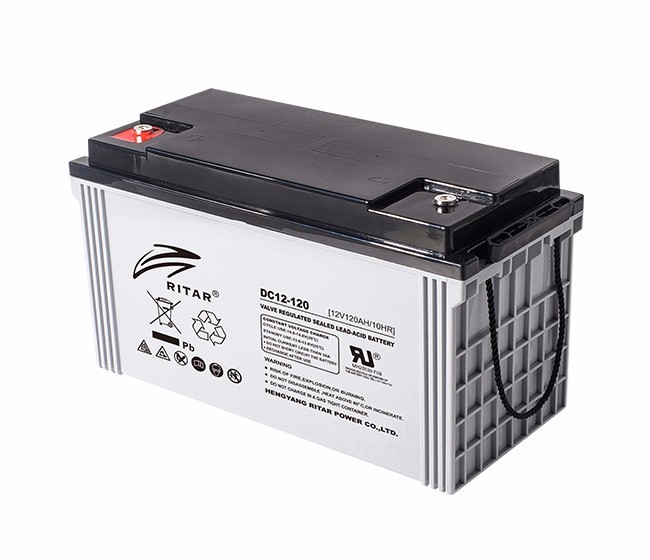

DC12-120	12	120	407	177	225	225	F5(M8) / F12(M8)
DC12-120A	12	120	407	177	225	225	F5(M8) / F12(M8)
DC12-120S	12	114	328	172	215	220	F5(M8) / F12(M8)
DC12-120SA	12	114	328	172	215	220	F5(M8) / F12(M8)
DC12-134	12	134	340	173	280	287	F5(M8) / F12(M8)
DC12-145	12	145	340	173	280	287	F5(M8) / F12(M8)

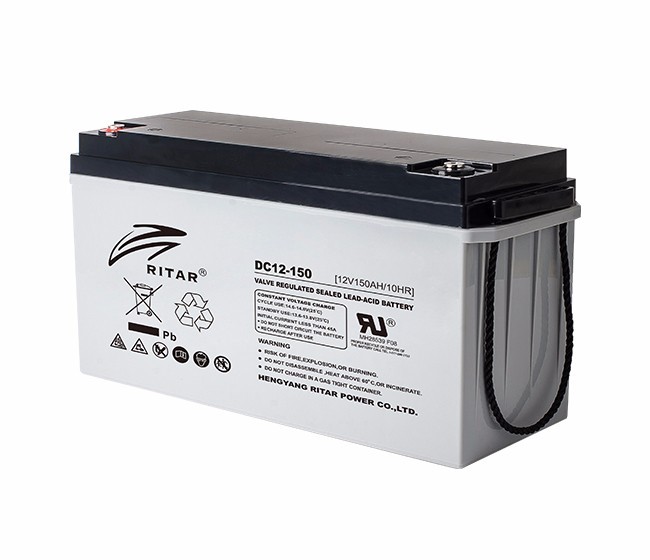

DC12-150	12	150	483	170	241	242	F5(M8) / F12(M8)
DC12-150A	12	150	483	170	241	242	F5(M8) / F12(M8)
DC12-160	12	160	532	207	214	219	F16(M8) / F12(M8)
DC12-160A	12	160	532	207	214	219	F16(M8) / F12(M8)
DC12-180	12	180	532	207	214	219	F16(M8) / F12(M8)
DC12-180A	12	180	532	207	214	219	F16(M8) / F12(M8)
DC12-190	12	190	532	207	214	219	F16(M8) / F12(M8)
DC12-190H	12	190	532	207	214	219	F16(M8) / F12(M8)
DC12-200	12	200	522	240	219	224	F16(M8) / F10(M8)
DC12-200A	12	200	522	240	219	224	F16(M8) / F10(M8)
DC12-225	12	225	522	240	219	224	F16(M8) / F10(M8)
DC12-230	12	230	521	269	204	209	F10(M8)
DC12-260	12	260	521	268	220	225	F14(M8)
DC12-260H	12	260	521	268	220	225	F14(M8)
FT12-55D	12	55	291	106	230	230	F11(M6)
FT12-90D	12	90	562	114	188	188	F6(M8)
FT12-100D	12	100	508	110	236	236	F14(M8)
FT12-100SD	12	100	410	109	285	293	F9(M8)
FT12-105D	12	105	508	110	236	236	F14(M8)/F8(M6)
FT12-110D	12	110	410	109	285	293	F9(M8)
FT12-150D	12	150	565	110	288	288	F9(M8)
FT12-160D	12	160	565	110	288	288	F9(M8)
FT12-180D	12	180	560	125	316	316	F14(M8)
FT12-185D	12	185	560	125	316	316	F9(M8)
FT12-100LD	12	100	410	109	285	293	F9(M8)
FT12-150LD	12	150	565	110	288	288	F9(M8)
FT12-185LD	12	185	560	125	316	316	F9(M8)
